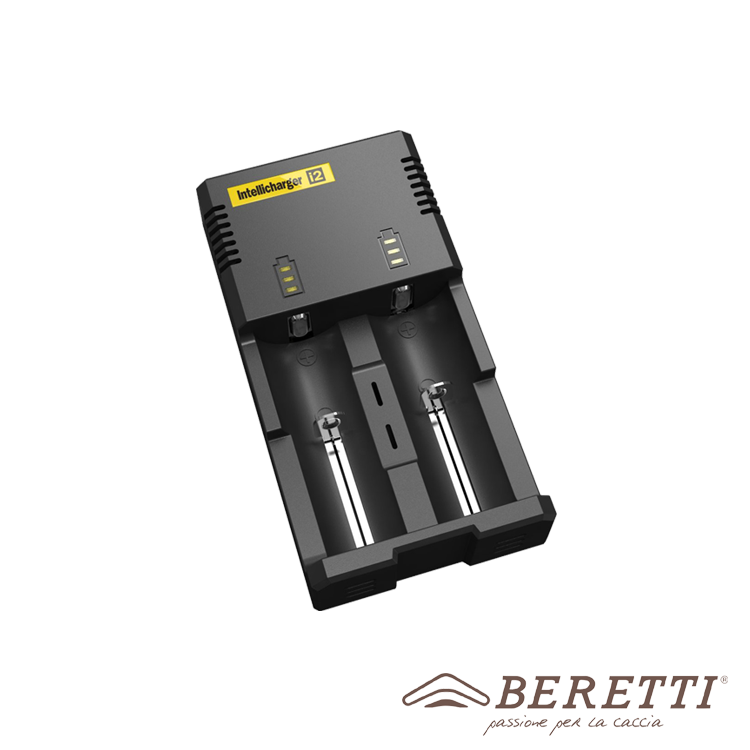

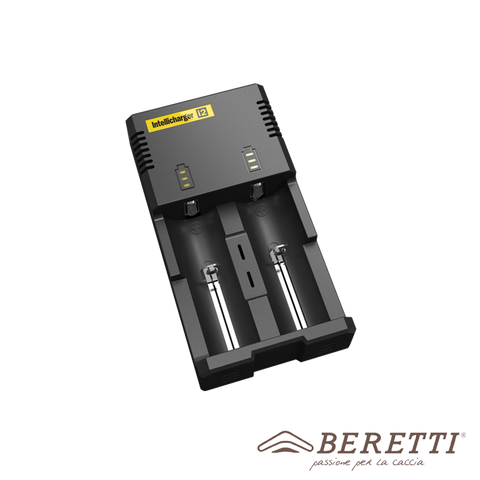

F60 Lithium Battery Charger

Ultra performing! Quick charging 2.5 / 3 hours 3.7V 4000 mAh lithium batteries!

AC Input: 220V with integrated power supply

DC Output 1: 300/600 mA – 4.2 V

DC Output 2: 300/600 mA – 3.7 V

The charger consists of:

• Italian socket
• 2 independent channel charger with 220 V power supply
• Dual bi-color LED to indicate battery charge status
• Red LED charging in progress
• Green LED end of charge
• Charging voltage selector 4.2V /3.7V
• Charging current selector 300/650 mA

We recommend setting the charger selectors to 4.2V / 650mAh

Useful information:

Charges the following 3.7V Li-Ion batteries:

26650 – 18650 – 18500 – 17670 – 17500 – 14500 – 16340 – 10440

It also charges 3.2V Li-FePO4 batteries

Storage temperature and charge.

Storing a lithium ion battery at the correct temperature and charge makes a difference in maintaining its charge capacity. The following table shows the permanent charge loss that occurs when stored at a given charge level and temperature.

Permanent Loss of Capacity vs. Storage Conditions

Storage Temperature 40% Charge 100% Charge

0 °C (32 °F) 2% loss after 1 year 6% loss after 1 year

25°C (77°F) 4% loss after 1 year 20% loss after 1 year

40°C (104°F) 15% loss after 1 year 35% loss after 1 year

60°C (140°F) 25% loss after 1 year 40% loss after 3 months

There is a significant benefit to avoiding storing a lithium-ion battery at full charge. A Li-ion battery stored at 40% charge will last many times longer than one stored at 100%, especially at high temperatures.

If a lithium-ion battery is stored with too little charge, there is a risk of allowing the charge to fall below the low-voltage threshold, resulting in an unrecoverable battery. Once the charge has fallen below that level, recharging can be dangerous. An internal safety circuit will open to prevent recharging, and the battery will be completely unusable for all practical purposes.

In circumstances where a second lithium battery is available for a given instrument, it is recommended that the unused battery be discharged to 40% and placed in a refrigerator to extend its shelf life. Batteries should be allowed to warm up to room temperature for 24 hours before each charge or discharge.

Security issues.

PRECAUTIONS:

Lithium-ion batteries can easily rupture, catch fire, or explode when exposed to high temperatures or direct sunlight. They should not be kept in the car during hot weather. Shorting a lithium battery can cause fire and explosion.

The container of a Li-Ion battery should never be opened for any reason, they contain safety devices that protect the batteries, if damaged, these can also cause the battery to catch fire or explode.

ATTENTION

Used batteries must be disposed of in an environmentally friendly manner, using the special containers made available by the public solid urban waste collection service.
